STEP3-VL-10B

📢 News & Updates

• 🚀 Online Demo: Explore Step3-VL-10B on ModelScope Spaces !
• 📢 [Notice] vLLM Support: vLLM integration is now officially supported! (PR #32329)
• ✅ [Fixed] HF Inference: Resolved the eos_token_id misconfiguration in config.json that caused infinite generation loops. (PR #f55c07e)
• ✅ [Fixing] Metric Correction: We sincerely apologize for inaccuracies in the Qwen3VL-8B benchmarks (e.g., AIME, HMMT, LCB). The errors were caused by an incorrect max_tokens setting (mistakenly set to 32k) during our large-scale evaluation process. We are re-running the tests and will provide corrected numbers in the next version of technical report.

🚀 Introduction

STEP3-VL-10B is a lightweight open-source foundation model designed to redefine the trade-off between compact efficiency and frontier-level multimodal intelligence. Despite its compact 10B parameter footprint, STEP3-VL-10B excels in visual perception, complex reasoning, and human-centric alignment. It consistently outperforms models under the 10B scale and rivals or surpasses significantly larger open-weights models (10×–20× its size), such as GLM-4.6V (106B-A12B), Qwen3-VL-Thinking (235B-A22B), and top-tier proprietary flagships like Gemini 2.5 Pro and Seed-1.5-VL.

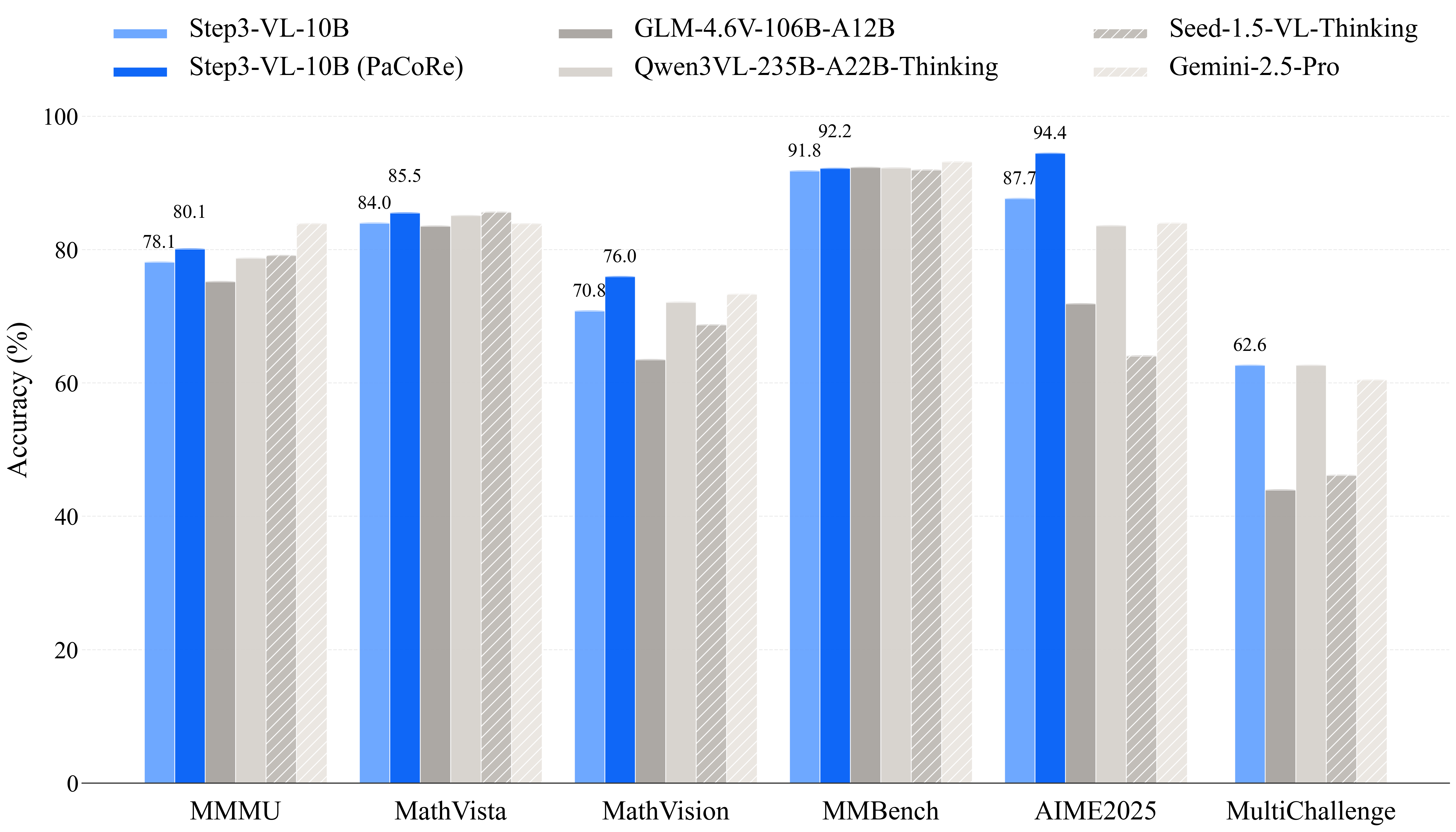

Figure 1: Performance comparison of STEP3-VL-10B against SOTA multimodal foundation models. SeRe: Sequential Reasoning; PaCoRe: Parallel Coordinated Reasoning.

The success of STEP3-VL-10B is driven by two key strategic designs:

1. Unified Pre-training on High-Quality Multimodal Corpus: A single-stage, fully unfrozen training strategy on a 1.2T token multimodal corpus, focusing on two foundational capabilities: reasoning (e.g., general knowledge and education-centric tasks) and perception (e.g., grounding, counting, OCR, and GUI interactions). By jointly optimizing the Perception Encoder and the Qwen3-8B decoder, STEP3-VL-10B establishes intrinsic vision-language synergy.
2. Scaled Multimodal Reinforcement Learning and Parallel Reasoning: Frontier capabilities are unlocked through a rigorous post-training pipeline comprising two-stage supervised finetuning (SFT) and over 1,400 iterations of RL with both verifiable rewards (RLVR) and human feedback (RLHF). Beyond sequential reasoning, we adopt Parallel Coordinated Reasoning (PaCoRe), which allocates test-time compute to aggregate evidence from parallel visual exploration.

📥 Model Zoo

Model Name	Type	Hugging Face	ModelScope
STEP3-VL-10B-Base	Base	🤗 Download	🤖 Download
STEP3-VL-10B	Chat	🤗 Download	🤖 Download

📊 Performance

STEP3-VL-10B delivers best-in-class performance across major multimodal benchmarks, establishing a new performance standard for compact models. The results demonstrate that STEP3-VL-10B is the most powerful open-source model in the 10B parameter class.

Comparison with Larger Models (10×–20× Larger)

Benchmark	STEP3-VL-10B (SeRe)	STEP3-VL-10B (PaCoRe)	GLM-4.6V (106B-A12B)	Qwen3-VL (235B-A22B)	Gemini-2.5-Pro	Seed-1.5-VL
MMMU	78.11	80.11	75.20	78.70	83.89	79.11
MathVista	83.97	85.50	83.51	85.10	83.88	85.60
MathVision	70.81	75.95	63.50	72.10	73.30	68.70
MMBench (EN)	92.05	92.38	92.75	92.70	93.19	92.11
MMStar	77.48	77.64	75.30	76.80	79.18	77.91
OCRBench	86.75	89.00	86.20	87.30	85.90	85.20
AIME 2025	87.66	94.43	71.88	83.59	83.96	64.06
HMMT 2025	78.18	92.14	57.29	67.71	65.68	51.30
LiveCodeBench	75.77	76.43	48.71	69.45	72.01	57.10

Note on Inference Modes:

SeRe (Sequential Reasoning): The standard inference mode using sequential generation (Chain-of-Thought) with a max length of 64K tokens.

PaCoRe (Parallel Coordinated Reasoning): An advanced mode that scales test-time compute. It aggregates evidence from 16 parallel rollouts to synthesize a final answer, utilizing a max context length of 128K tokens.

Unless otherwise stated, scores below refer to the standard SeRe mode. Higher scores achieved via PaCoRe are explicitly marked.

Comparison with Open-Source Models (7B–10B)

Category	Benchmark	STEP3-VL-10B	GLM-4.6V-Flash (9B)	Qwen3-VL-Thinking (8B)	InternVL-3.5 (8B)	MiMo-VL-RL-2508 (7B)
STEM Reasoning	MMMU	78.11	71.17	73.53	71.69	71.14
MathVision	70.81	54.05	59.60	52.05	59.65
MathVista	83.97	82.85	78.50	76.78	79.86
PhyX	59.45	52.28	57.67	50.51	56.00
Recognition	MMBench (EN)	92.05	91.04	90.55	88.20	89.91
MMStar	77.48	74.26	73.58	69.83	72.93
ReMI	67.29	60.75	57.17	52.65	63.13
OCR & Document	OCRBench	86.75	85.97	82.85	83.70	85.40
AI2D	89.35	88.93	83.32	82.34	84.96
GUI Grounding	ScreenSpot-V2	92.61	92.14	93.60	84.02	90.82
ScreenSpot-Pro	51.55	45.68	46.60	15.39	34.84
OSWorld-G	59.02	54.71	56.70	31.91	50.54
Spatial	BLINK	66.79	64.90	62.78	55.40	62.57
All-Angles-Bench	57.21	53.24	45.88	45.29	51.62
Code	HumanEval-V	66.05	29.26	26.94	24.31	31.96

Key Capabilities

• STEM Reasoning: Achieves 94.43% on AIME 2025 and 75.95% on MathVision (with PaCoRe), demonstrating exceptional complex reasoning capabilities that outperform models 10×–20× larger.
• Visual Perception: Records 92.05% on MMBench and 80.11% on MMMU, establishing strong general visual understanding and multimodal reasoning.
• GUI & OCR: Delivers state-of-the-art performance on ScreenSpot-V2 (92.61%), ScreenSpot-Pro (51.55%), and OCRBench (86.75%), optimized for agentic and document understanding tasks.
• Spatial Understanding: Demonstrates emergent spatial awareness with 66.79% on BLINK and 57.21% on All-Angles-Bench, establishing strong potential for embodied intelligence applications.

🏗️ Architecture & Training

Architecture

• Visual Encoder: PE-lang (Language-Optimized Perception Encoder), 1.8B parameters.
• Decoder: Qwen3-8B.
• Projector: Two consecutive stride-2 layers (resulting in 16× spatial downsampling).
• Resolution: Multi-crop strategy consisting of a 728×728 global view and multiple 504×504 local crops.

Training Pipeline

• Pre-training: Single-stage, fully unfrozen strategy using AdamW optimizer (Total: 1.2T tokens, 370K iterations).
  • Phase 1: 900B tokens.
  • Phase 2: 300B tokens.
• Supervised Finetuning (SFT): Two-stage approach (Total: ~226B tokens).
  • Stage 1: 9:1 text-to-multimodal ratio (~190B tokens).
  • Stage 2: 1:1 text-to-multimodal ratio (~36B tokens).
• Reinforcement Learning: Total >1,400 iterations.
  • RLVR: 600 iterations (Tasks: mathematics, geometry, physics, perception, grounding).
  • RLHF: 300 iterations (Task: open-ended generation).
  • PaCoRe Training: 500 iterations (Context length: 64K max sequence).

🛠️ Quick Start

Inference with Hugging Face Transformers

We introduce how to use our model at inference stage using transformers library. It is recommended to use python=3.10, torch>=2.1.0, and transformers=4.57.0 as the development environment.We currently only support bf16 inference, and multi-patch for image preprocessing is supported by default. This behavior is aligned with vllm.

Note: If you experience infinite generation issues, please check Discussion #9 for the fix.

from modelscope import AutoProcessor, AutoModelForCausalLM

key_mapping = {

”^vision_model”: “model.vision_model”,

r”^model(?!.(language_model|vision_model))“: “model.language_model”,

“vit_large_projector”: “model.vit_large_projector”,

}

model_path = “stepfun-ai/Step3-VL-10B”

processor = AutoProcessor.from_pretrained(model_path, trust_remote_code=True)

messages = [

{

“role”: “user”,

“content”: [

{“type”: “image”, “url”: “https://huggingface.co/datasets/huggingface/documentation-images/resolve/main/bee.jpg”},

{“type”: “text”, “text”: “What’s in this picture?”}

]

},

]

model = AutoModelForCausalLM.from_pretrained(

model_path,

trust_remote_code=True,

device_map=“auto”,

torch_dtype=“auto”,

key_mapping=key_mapping).eval()

inputs = processor.apply_chat_template(

messages, add_generation_prompt=True, tokenize=True,

return_dict=True, return_tensors=“pt”

).to(model.device)

generate_ids = model.generate(**inputs, max_new_tokens=1024, do_sample=False)

decoded = processor.decode(generate_ids[0, inputs[“input_ids”].shape[-1] :], skip_special_tokens=True)

print(decoded)

🚀 Deployment with vLLM (OpenAI-compatible API)

For deployment, you can use vllm to create an OpenAI-compatible API endpoint.

1. Install vLLM nightly (choose one):
   1. Python / pip
   2. pip install vllm –pre –extra-index-url https://wheels.vllm.ai/nightly

Python ≥3.10 is required. Please ensure vLLM version >= 0.14.0rc2.dev143+gc0a350ca7.

1. Docker (nightly image)
2. docker pull vllm/vllm-openai:nightly-963dc0b865a3b6011fde7e0d938f86245dccbfac

The tag above pins the nightly build we validated; update to the latest nightly tag if needed.

1. Launch the server:
2. VLLM_USE_MODELSCOPE=true vllm serve –model stepfun-ai/Step3-VL-10B -tp 1 –reasoning-parser deepseek_r1 –enable-auto-tool-choice –tool-call-parser hermes –trust-remote-code

Crucial Step: You must append the –trust-remote-code flag to your deployment command. This is mandatory for models that utilize custom code for their architecture.

1. Call the endpoint using any OpenAI-compatible SDK (example in Python):

2. from openai import OpenAI

3. client = OpenAI(base_url=”http://localhost:8000/v1”, api_key=“dummy”)

4. resp = client.chat.completions.create(

5. model=“stepfun-ai/Step3-VL-10B”,

6. messages=[{

7. “role”:

8. “user”,

9. “content”: [{

10. “type”: “image_url”,

11. “image_url”: {

12. “url”:

13. “https://huggingface.co/datasets/huggingface/documentation-images/resolve/main/bee.jpg”

14. }

15. }, {

16. “type”: “text”,

17. “text”: “what’s in this picture?”

18. }]

19. }])

20. print(resp.choices[0].message.content)

📜 Citation

If you find this project useful in your research, please cite our technical report:

@misc{huang2026step3vl10btechnicalreport,

title={STEP3-VL-10B Technical Report},

author={Ailin Huang and Chengyuan Yao and Chunrui Han and Fanqi Wan and Hangyu Guo and Haoran Lv and Hongyu Zhou and Jia Wang and Jian Zhou and Jianjian Sun and Jingcheng Hu and Kangheng Lin and Liang Zhao and Mitt Huang and Song Yuan and Wenwen Qu and Xiangfeng Wang and Yanlin Lai and Yingxiu Zhao and Yinmin Zhang and Yukang Shi and Yuyang Chen and Zejia Weng and Ziyang Meng and Ang Li and Aobo Kong and Bo Dong and Changyi Wan and David Wang and Di Qi and Dingming Li and En Yu and Guopeng Li and Haiquan Yin and Han Zhou and Hanshan Zhang and Haolong Yan and Hebin Zhou and Hongbo Peng and Jiaran Zhang and Jiashu Lv and Jiayi Fu and Jie Cheng and Jie Zhou and Jisheng Yin and Jingjing Xie and Jingwei Wu and Jun Zhang and Junfeng Liu and Kaijun Tan and Kaiwen Yan and Liangyu Chen and Lina Chen and Mingliang Li and Qian Zhao and Quan Sun and Shaoliang Pang and Shengjie Fan and Shijie Shang and Siyuan Zhang and Tianhao You and Wei Ji and Wuxun Xie and Xiaobo Yang and Xiaojie Hou and Xiaoran Jiao and Xiaoxiao Ren and Xiangwen Kong and Xin Huang and Xin Wu and Xing Chen and Xinran Wang and Xuelin Zhang and Yana Wei and Yang Li and Yanming Xu and Yeqing Shen and Yuang Peng and Yue Peng and Yu Zhou and Yusheng Li and Yuxiang Yang and Yuyang Zhang and Zhe Xie and Zhewei Huang and Zhenyi Lu and Zhimin Fan and Zihui Cheng and Daxin Jiang and Qi Han and Xiangyu Zhang and Yibo Zhu and Zheng Ge},

year={2026},

eprint={2601.09668},

archivePrefix={arXiv},

primaryClass={cs.CV},

url={https://arxiv.org/abs/2601.09668},

}

📄 License

This project is open-sourced under the Apache 2.0 License.
